Description

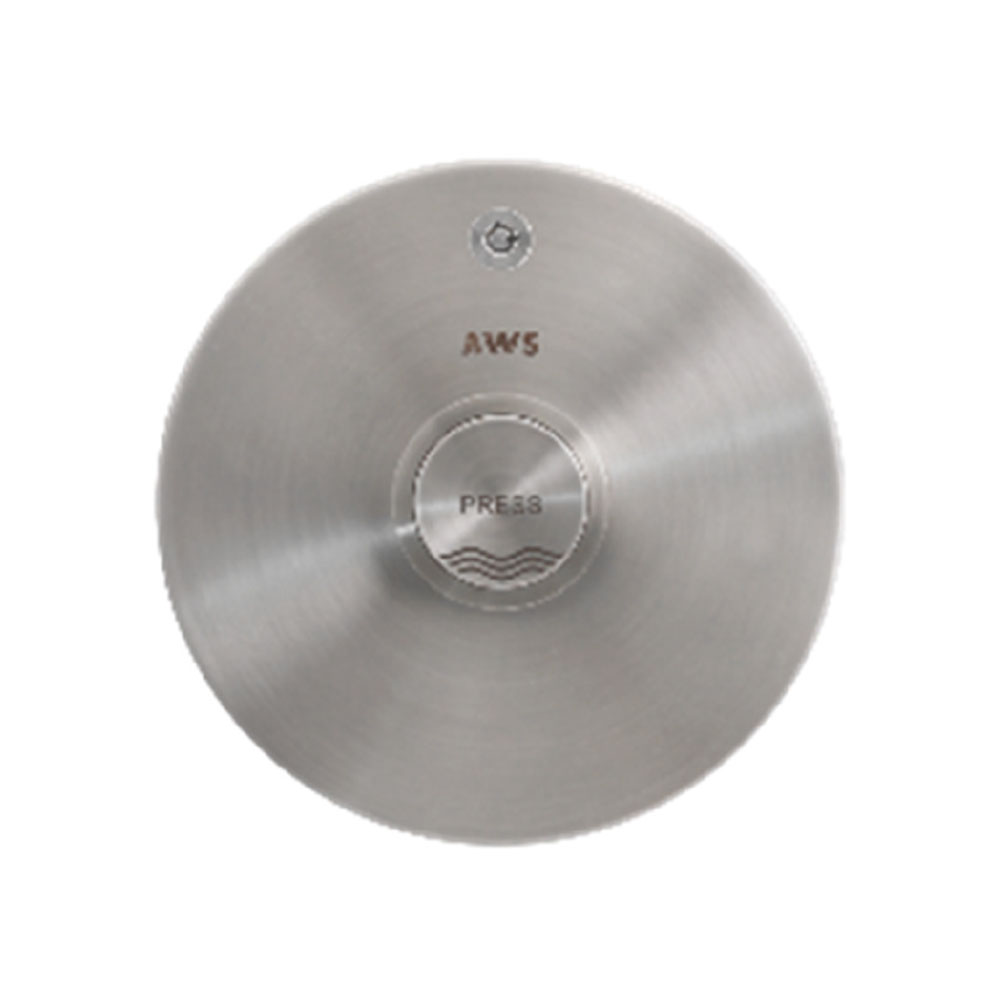

The AWS 315R-CL Single Manual WC Flush Valve with Cam Lock is a robust and reliable sanitation solution engineered specifically for high-traffic environments in Singapore. Designed for heavy-duty performance, this valve features an integrated cam lock mechanism that enhances security and prevents tampering, making it an ideal choice for public restrooms, commercial hubs, and industrial facilities. Its durable brass construction and corrosion-resistant finish ensure long-term functionality and ease of maintenance, providing a cost-effective and sustainable solution for the local market’s demanding infrastructure needs.
FEATURES
- Integral stop valve w/ strainer and Vacuum breaker.

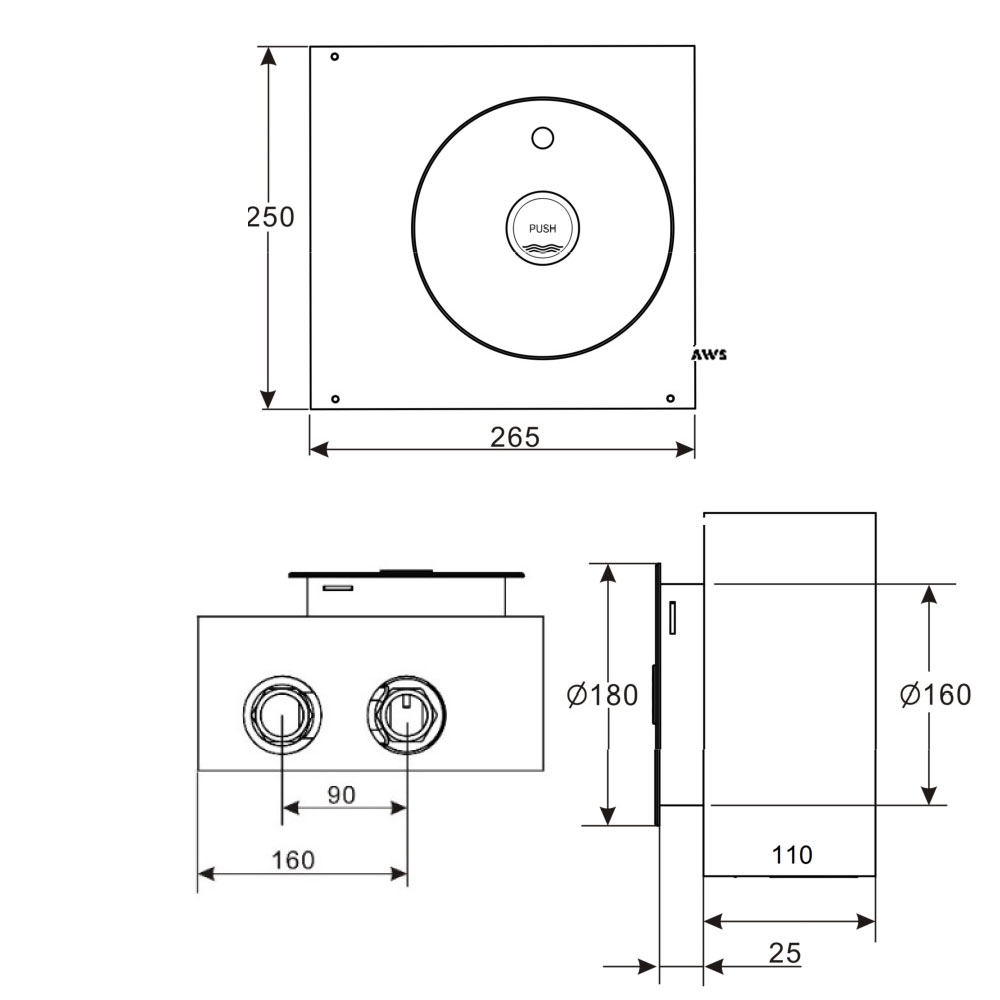

- Size: 180mm
- Adjustable flush volume.
- Cam lock.
- Servicing from front panel.

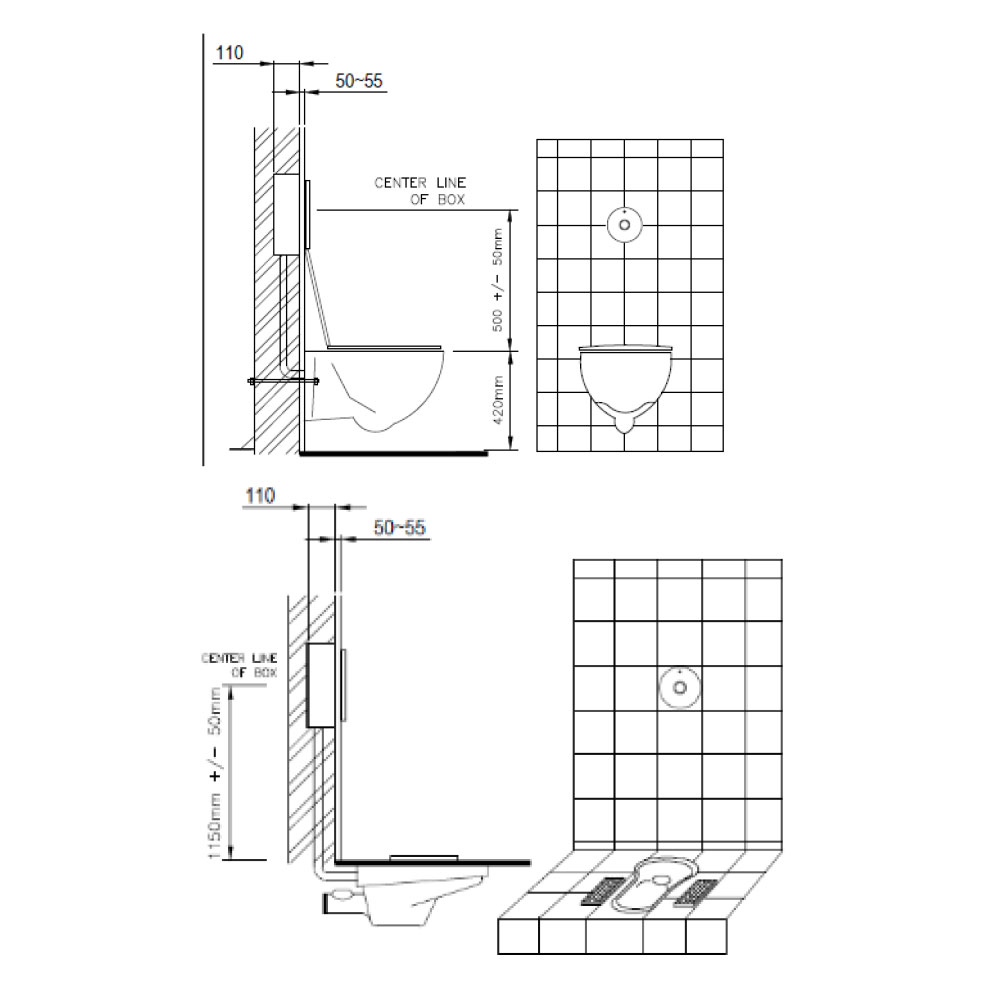

- Installation: Concealed box type for solid wall >140 mm thick. Inlet from above or below. Servicing from front.
- Options: 6L flush volume. Various flush pipes.
- Size: 1″ Bspt inlet, 32mm OD outlet.
- Pressure range: 0.7 – 7 bar Dynamic pressure.
- Flush: Full Flush 3.5L-4.0L.
