Description
The AWS 710AEL Exposed Sensor WC Flush Valve is engineered for high-demand commercial and public restroom environments, providing a robust combination of touchless operation and enhanced security. As an Exposed model, it is designed for surface-mounting on the wall, making installation and maintenance straightforward. The core features include an infrared sensor for hygienic, hands-free flushing, coupled with a Manual Bypass button to guarantee operation in the event of a power failure. Crucially, this specific model comes standard with a Cam Lock mechanism, a security feature that uses a simple, key-operated lock to restrict unauthorized access to the valve’s internal hydraulic components, preventing vandalism, tampering, and theft of the unit’s core mechanism, thereby ensuring long-term reliability and reducing facility downtime.
FEATURES
- 240 x 240mm
- Integral strainer.
- Water saving functions.
- Diagnostic functions.
- Adjustable sensing range.
- Manual by-pass in case of power failure.
- Vacuum breaker.
- Cam lock.

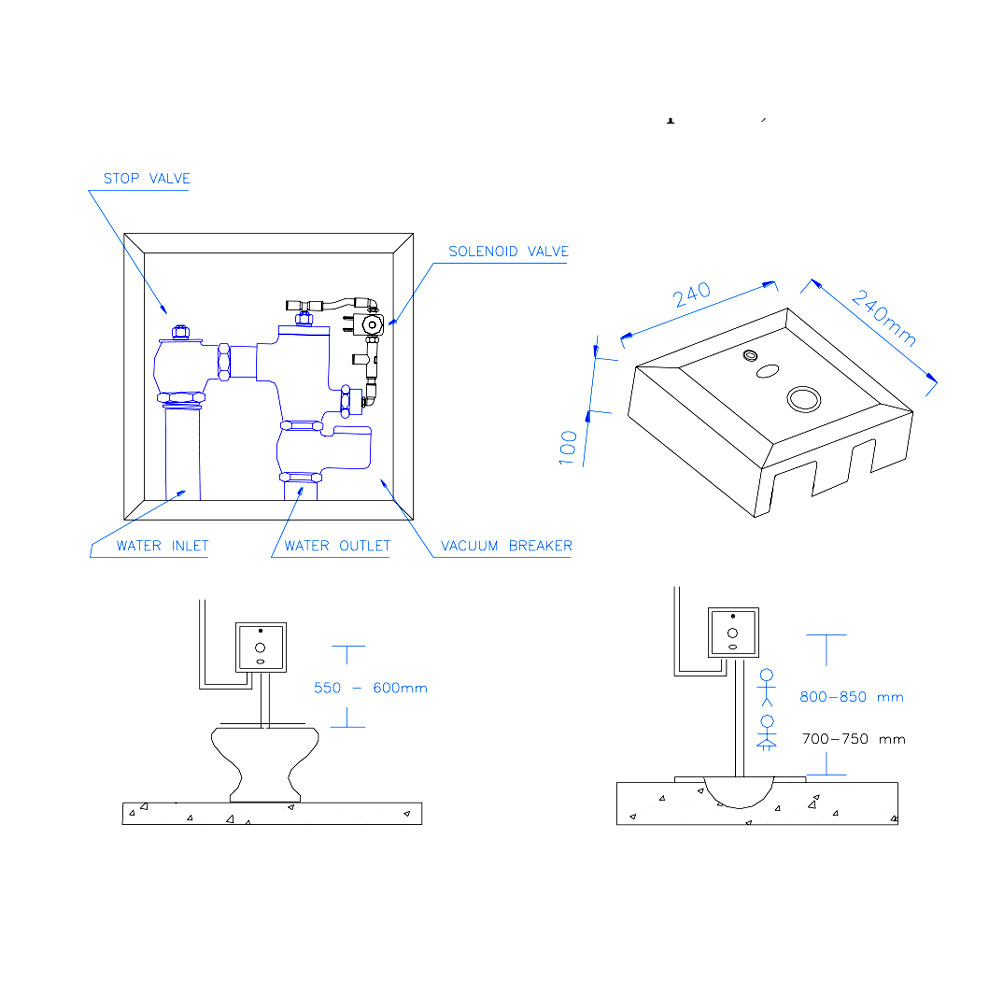

- Installation: Exposed mounted to the wall. Inlet from behind or below. To replace manual flush valves.
- Flushing Volume: Available 2 ticks or 3 ticks
- Electrical: 230vac/12vdc. 500mA
- British Std AC adaptor supplied.
- Size: 1″ bspt inlet, 32mm OD outlet.
- Pressure range: 0.7 – 6 bar Dynamic pressure.
