Description
TECE 9300203 Cistern Specification

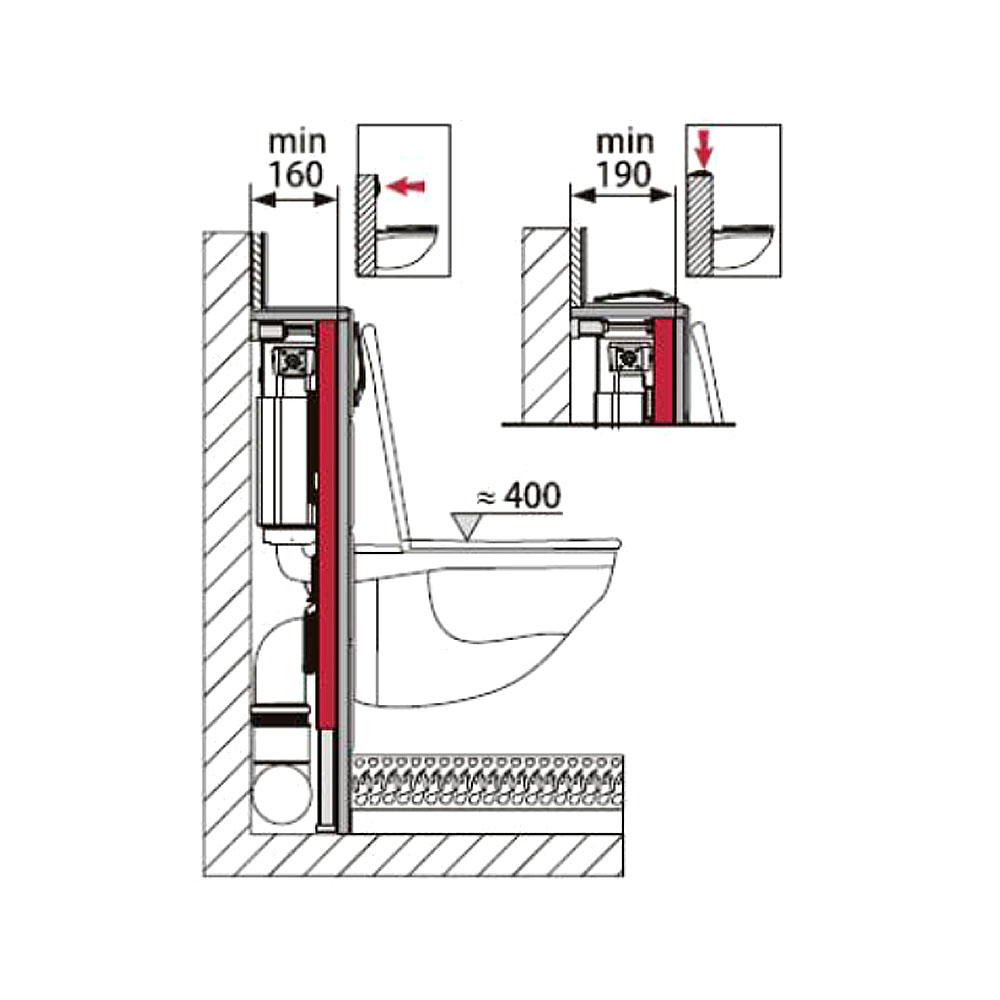

- Top or Front Actuation only, installationheight820mm
- Product Code -9300203
- For all TECE flush plates.

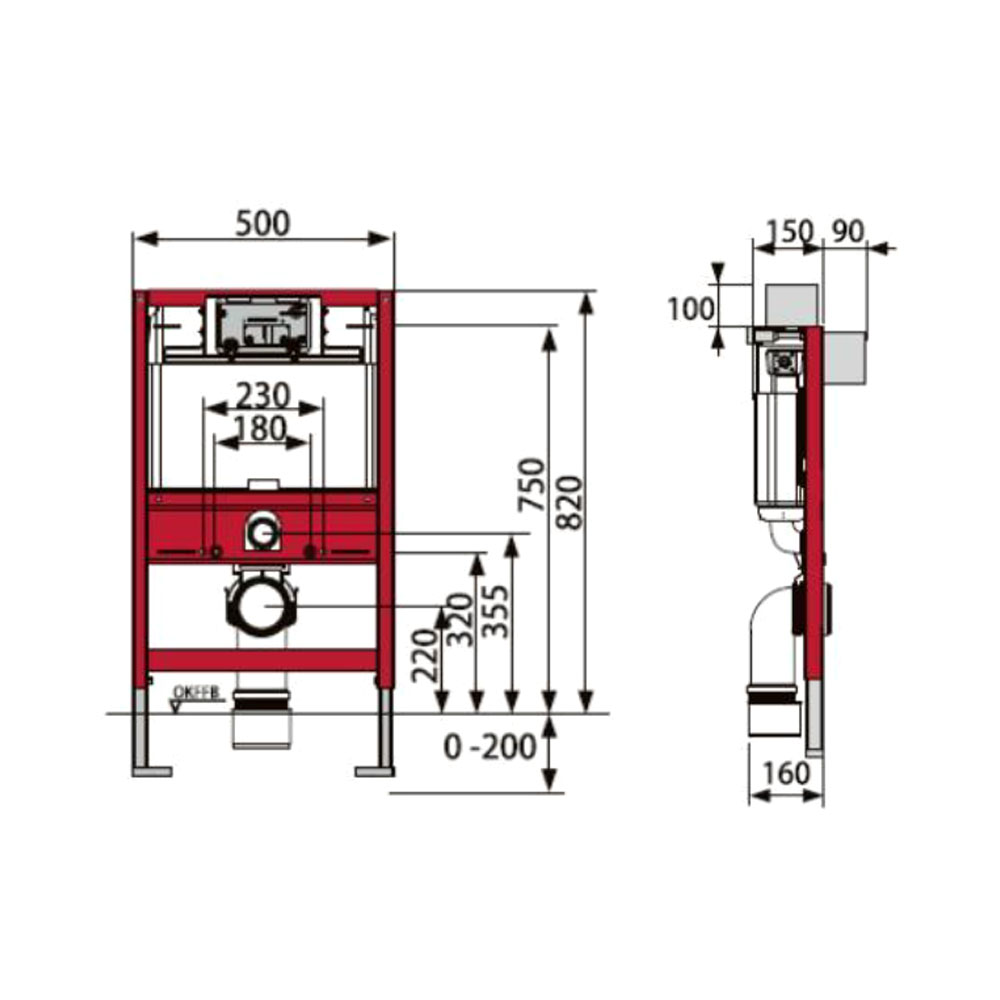

- Dimension:500mm(l)X 150-160mm(w)X 820mm(h)
- Toilet module for attaching to TECEprofil section tubes or as pre-wall or corner module. Completely pre-assembled unit, consisting of:
- Cistern connection with 1/2″inner thread
- Hydraulically optimized cistern for low installation heights
- 10‐litre tank volume; 4.5litre to SS574 and 6‐litre cistern to DIN EN14055; 7.5/9‐litre flush volume can be optimally set at any time; 3‐litre partial flush volume with dual-flush technology. Residual volume usable for immediate flush cleaning.
- Certified in accordance with DIN EN 14055
- Acoustic group1 in accordance with DIN 4109
- Low-noise hydraulic filling valve
- Module consisting of:
• Self-supporting installation frame, powder-coat
• TwoM12 retaining bolts and nuts
• Toilet drain bend DN 90incl. joint adapter DN 90/100madeof PP
• Joint adapter also suitable for horizontal installation
• Toilet connection set DN 90, including protective plugs
• Two depth-adjustable module attachments
