Description
TECE 9300284 Cistern Specification
- with TECE cistern, Top or Front Actuation only, installation height 1120mm
- Product Code – 9300284
- For all TECE flushplates.

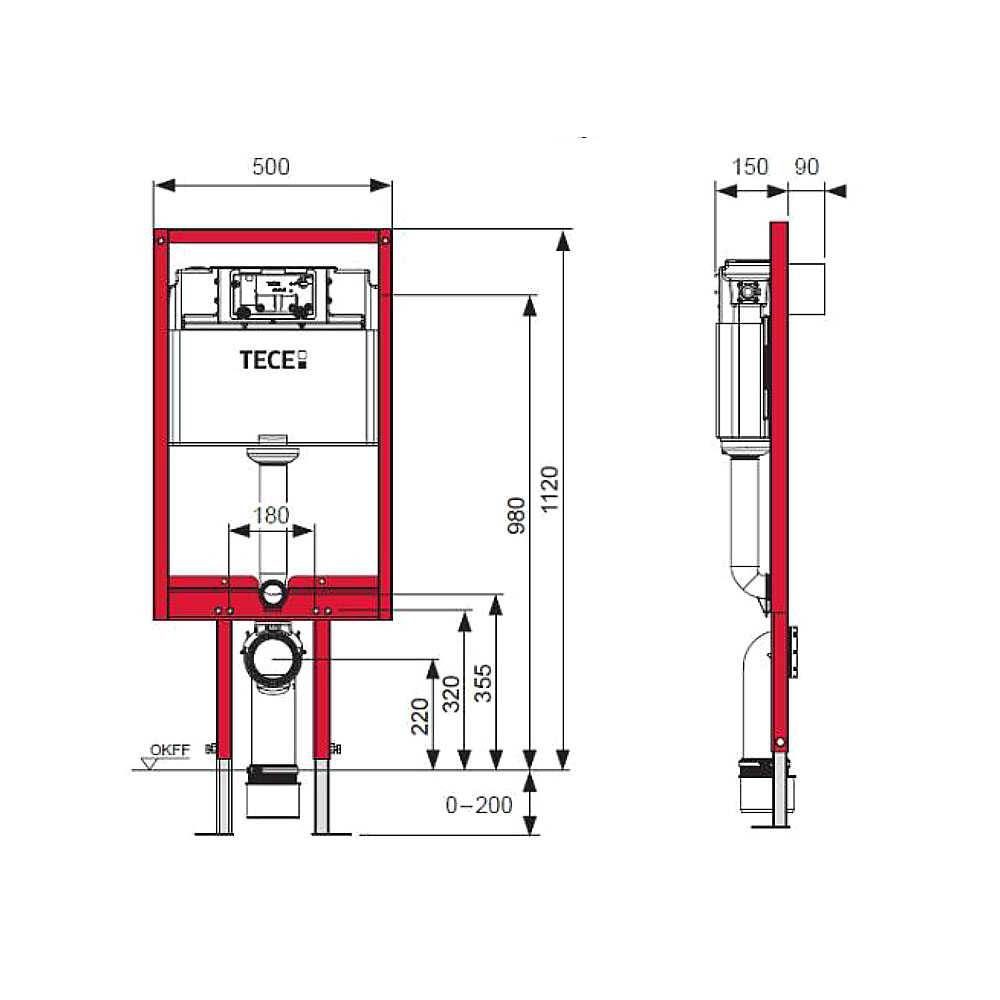

- Dimension: 500mm(l) X 150-160mm(w) X 1120mm (h)
- Toilet module for attaching to TECEprofil section tubes or as pre-wall or corner module. Completely pre-assembled unit, consisting of:
• Cistern connection with 1/2″ inner thread
• Hydraulically optimised cistern for low installation heights
• 10‐litre tank volume; 4.5 litre to SS574 and 4‐litre cistern to DIN EN14055; 9‐litre flush volume can be optimally set at any time; 3‐litre partial flush volume with dual-flush technology.
• Residual volume usable for immediate flush cleaning.
• Certified in accordance with DIN EN 14055
• Acoustic group 1 in accordance with DIN 4109
• Low-noise hydraulic filling valve - Module consisting of:
• Self-supporting installation frame, powder-coated
• Two M12 retaining bolts and nuts
• Toilet drain bend DN 90 incl. joint adapter DN 90/100 made of PP
• Joint adapter also suitable for horizontal installation
• Toilet connection set DN 90, including protective plugs
• Two depth-adjustable module attachments
