TECE 9370224 TECEbox Uni Concealed Cistern

Description

TECE 9370224 Cistern Specification

• Top actuation only, installation height 820mm
• Product Code – 9370224
• For all TECE flushplates.

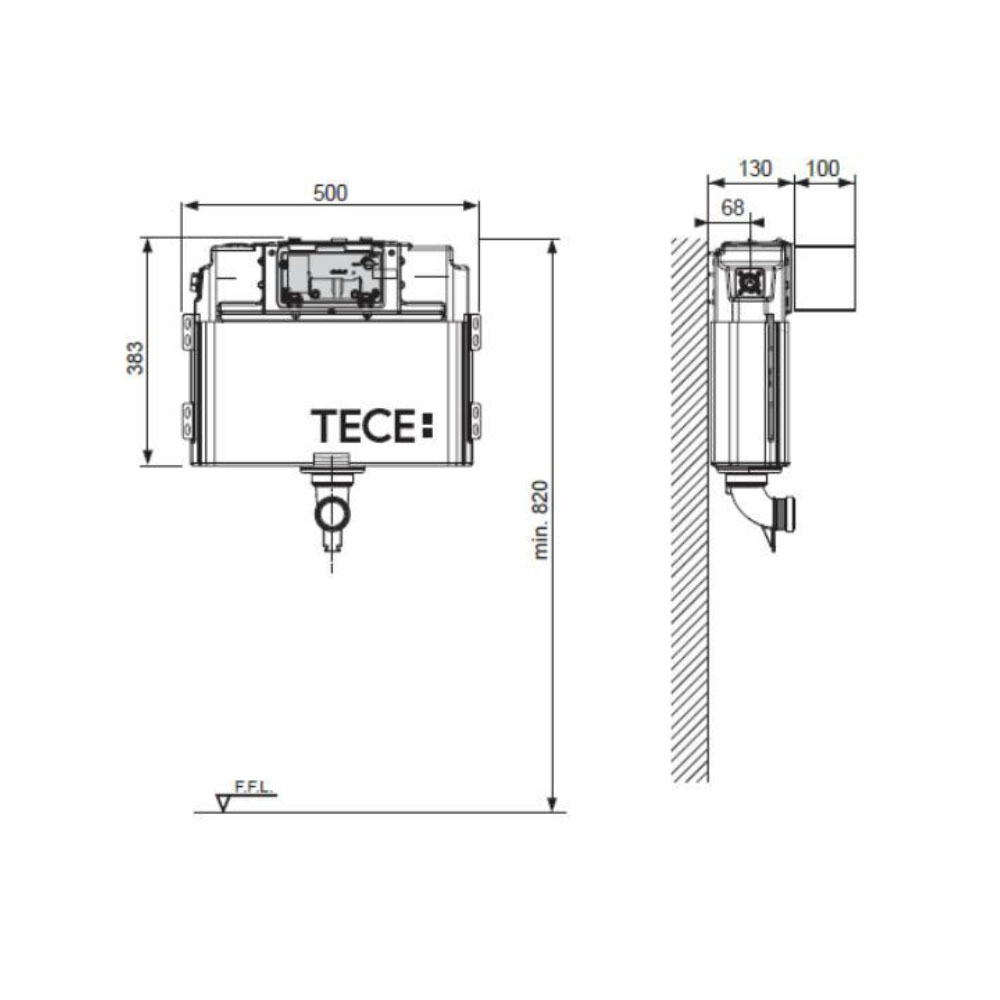

• Dimension: 500mm(l) X 130mm(w) X 820mm (h)
• Cistern for bricked‐in pre‐wall installation in front of a solid wall. For toilet flush handle and TECE flush plates.
• Safety tank made from impact-resistant plastic
• Cistern fully pre-assembled and sealed
• TECE brick‐wall cistern, hydraulically optimised for low installation heights
• Depending on assembly, it can be used with top flush controls.
• Insulated against condensation water
• For TECE flush plates and toilet flush handle
• Can be set as a single or dual-flush cistern depending on the flush plate used.
• Acoustic group 1 in accordance with DIN 4109
• Low-noise hydraulic filling valve
• Incl. wall attachment ‐ assembly plate and mounting material
• Flush pipe elbow
• Cistern connection with 1/2″ external thread
• 10 liter tank volume; 4 liter pre-set standard flush volume; option of setting a 4.5/7.5/9 liter flush at any time; 3 liter low-volume flush for dual-flush system. Remaining volume can be used for immediate cleaning flush.
