Description
TECE 9370504 Cistern Specification
- For floor standing toilet, wall hung toilet to add chair bracket,
- Front actuation only, installation height 1075mm
- Product Code – 9370504
- For all TECE flush plates. *Can match with TECEflushpoint Pnuematic Flush Plates

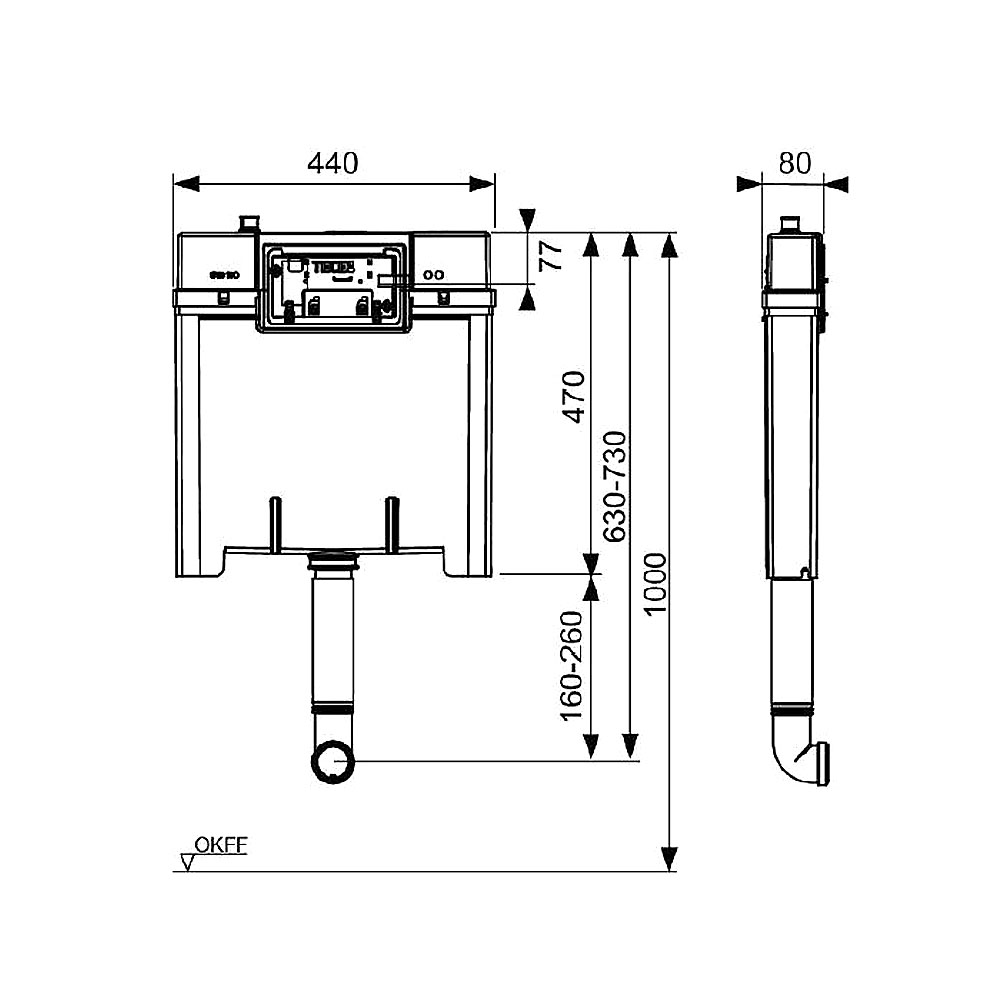

- Dimension: 440mm(l) X 80mm(w) X 1000mm (h)
- TECEbox Octa II cistern, 8 cm, for floor-standing toilet (wall hung toilet to add chair bracket), installation height 1075 mm Octa II cistern 8 cm, for front actuation:
• Safety tank made of impact-resistant plastic, tested to EN 14055
• Cistern fully pre-assembled and sealed.
• Cistern connection with outer thread R 1/2″ at the top, compatible with quick adapters
• 7-litre tank volume; 6-litre pre-set standard flush volume, 4.5-litre flush volume can be set at any time; 3-litre partial flush volume for dual-flush system; optional setting of a 4/2 litre flush volume possible.
• Insulated against condensation water
• For TECE flush plates and toilet flush handle
• Can be used as a single or dual-flush cistern
• “easy fit” flush plate installation
• Installation tunnel for service opening, can be shortened without tools
• Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109
• Reinforcement fabrics for mounting
