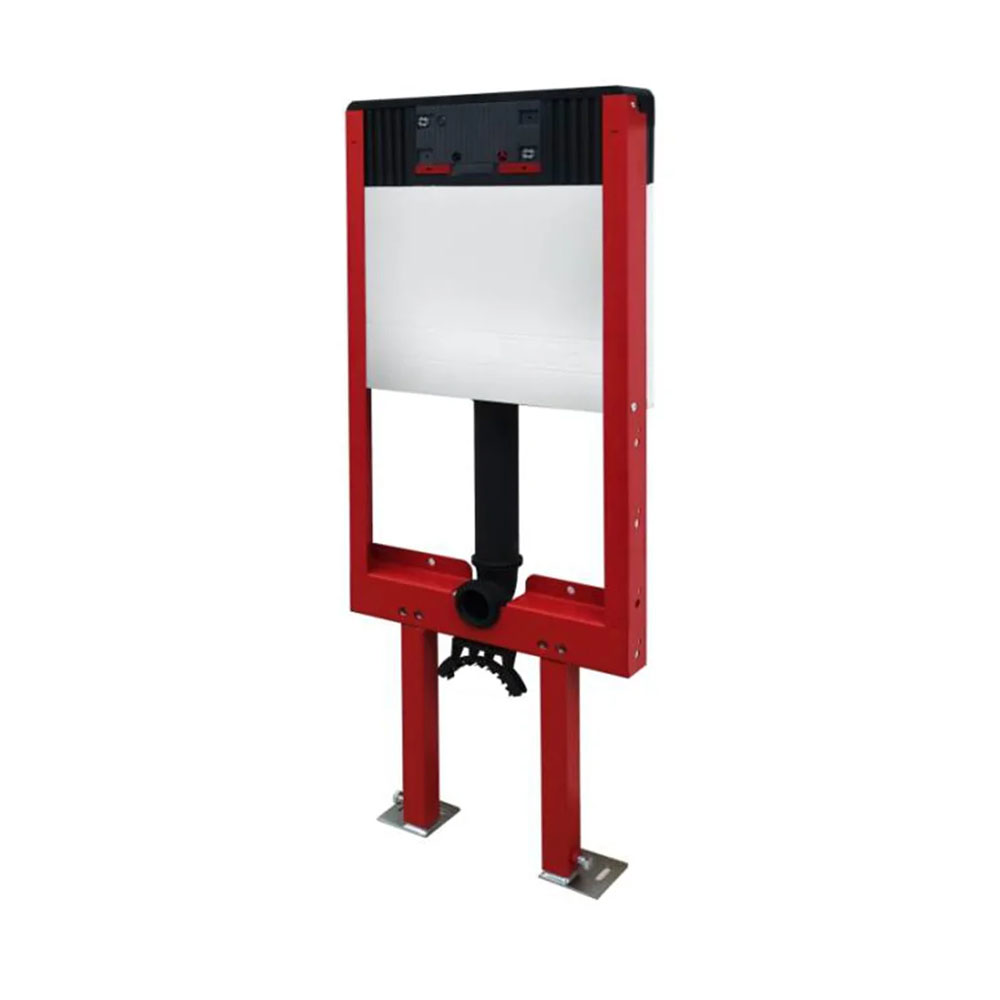

TECE 9500100 Cistern Specification
- with TECE cistern, Front Actuation only, installation height 1061mm
- Product Code -9500100
- For all TECE flush plates except for all the electronic & pneumatic flush plates!

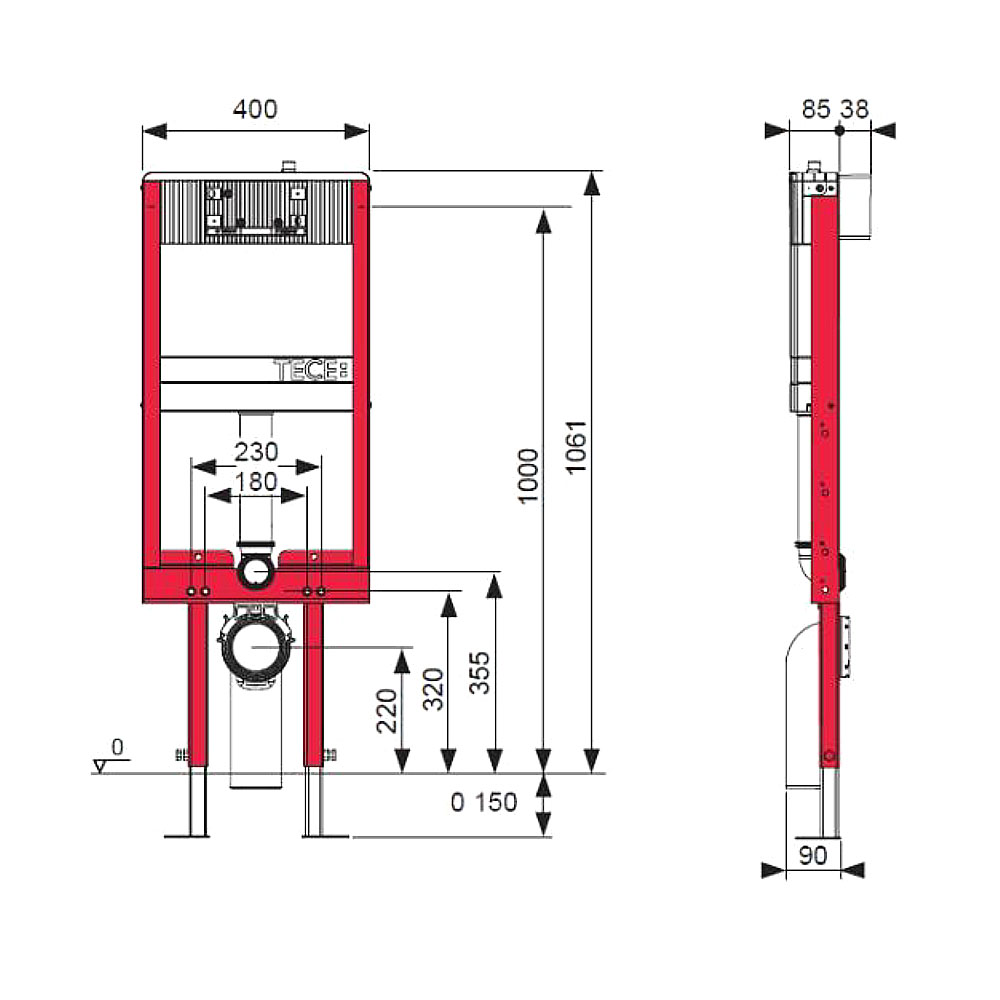

- Dimension:400mm(l)X 90mm(w)X 1000-1061mm(h)
- Toilet module for installing in metal or wooden post-and-beam walls and as pre-wall or corner module; also suitable for single block assembly.
- Unit consisting of:
•Compact cistern for front actuation:
•Safety tank made from impact-resistant plastic
•Cistern connection with 1/2″outerthread
•6.5 litre tankvolume;6 litre pre-set standard flush volume; option of settinga 4.0/4.5/4.8litre flush at anytime; 3 litre Low volume flush for dual-flush system. Remaining volume can be used for immediate cleaning flush.
•Certified in accordance with DIN EN 14055
•Low-noise hydraulic filling valve - Module consisting of:
•Installation frame, powder-coated
•TwoM12 retaining bolts and nuts
•Toilet drainbend DN 90madeof PVC incl. joint adapter DN 90/100 made of PE-HD
•Joint adapter also suitable for horizontal installation
•Toilet connection set DN 90, including protective plugs
